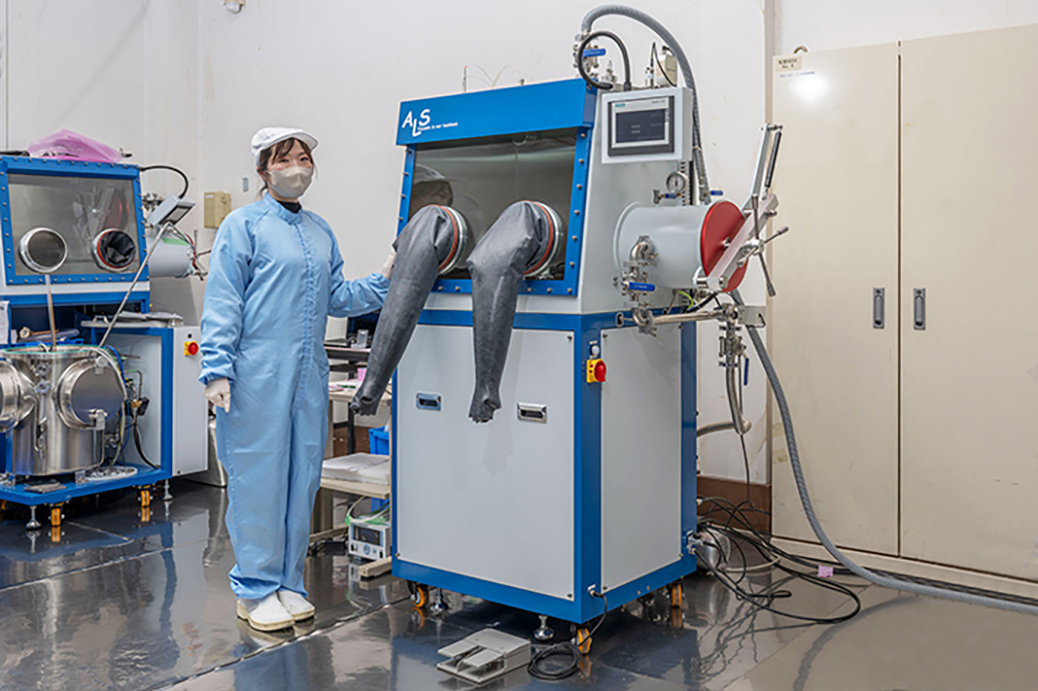

Glove Box Sagami
High performance and advanced features at a reasonable price!
Features
●Reasonable Price
Achieved cost reduction through major design changes
●Newly Developed Compact Gas Circulation Purifier
① Catalyst regeneration function (copper catalyst)
② Internal box environment
Oxygen concentration ≤5PPM / Dew point ≤5PPM (-64°C or lower)
Complex valve switching during regeneration is PLC-automated
●Safety for N2 Gas
①Automatic shut-off of main valve in case of N2 gas leak
②Automatic control (APC) of internal N2 pressure
●Reduced Running Costs
Refining agent replacement can be performed by the customer
●Special Coating on Front Resin Panel Interior
Enhanced solvent resistance and static prevention achieved
●Expandability
Compatible with our vacuum deposition equipment
Also compatible with third-party vacuum equipment meeting the following dimensions
(Substrate transport level: 1242mm × Flange: Φ265mm)
● Options
VOC (Volatile Organic Compound) sensors, etc.
Basic Specifications
| 2 glove sizes | Gas-Circulating Purification Glovebox | ||
| Dimensions | Dimensions Material Front Window (Single-sided) Antechamber Glove Box Internal 100V Outlet |
W780mm × D650mm × H1707mm (excluding protrusions)
SUS304
Polycarbonate resin Size: Inner diameter Φ254mm × Length 293mm Φ8-inch standard × 2 pieces, butyl rubber Power supply to customer equipment |
|
| Trace Concentration Meter | Oxygen Concentration Meter Model 1 Moisture Concentration Model 1 VOC Concentration Meter |
5 ppm or less 5 ppm or less (dew point approx. -64°C or lower) Optional (usable in an inert gas atmosphere) |
|
| Purification mechanism | Gas circulation system Purification agent for oxygen removal Purification agent control for moisture and solvent removal |
Forced circulation via blower Copper catalyst Porous filter Automatic control via PLC |
|
| Gas Safety Design | Internal Pressure Automatic Control N2 Gas Leak Detection Mechanism |
PLC-Based Automatic Control Detects gas flow and halts N2 introduction |
|
| Operation | Touch Panel Input/Display | Purified Solution Playback Operation Concentration Display Interlock Display, etc. |
|
| Power Requirements | Electricity 200V single-phase / 100V Compressed Air N2 gas Mix gas (3-5% hydrogen) |
(100V for customer equipment) For valve operation For gas circulation For copper catalyst regeneration |
|
