For high accuracy LUMO levels measurement and unoccupied density of states evaluation
LEIPS：Low-Energy Inverse Photoemission Spectroscopy
LE-１ series |
Achieves high-precision LUMO levels (electron affinities) measurement without damage to organic materials for the first time.
Furthermore, we are expanding the field of activity to inorganic semiconductors,
polymer materials, etc.
|
■You can choose the configuration according to budget and purpose
| LE-1 Complete |
LE-1 Basic |
LE-1 Element |
 |
 |
 |

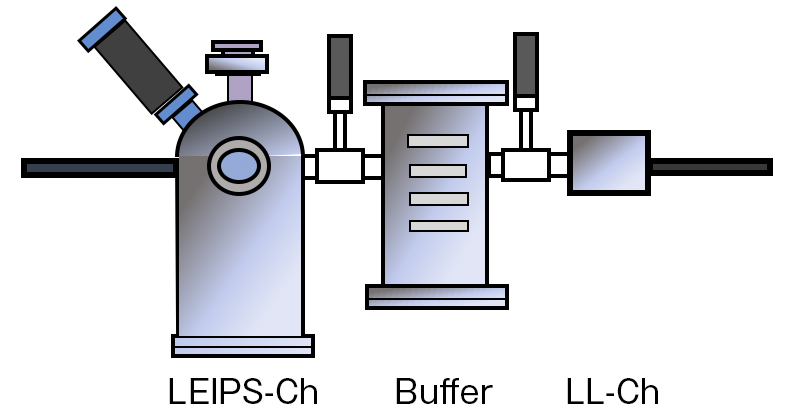

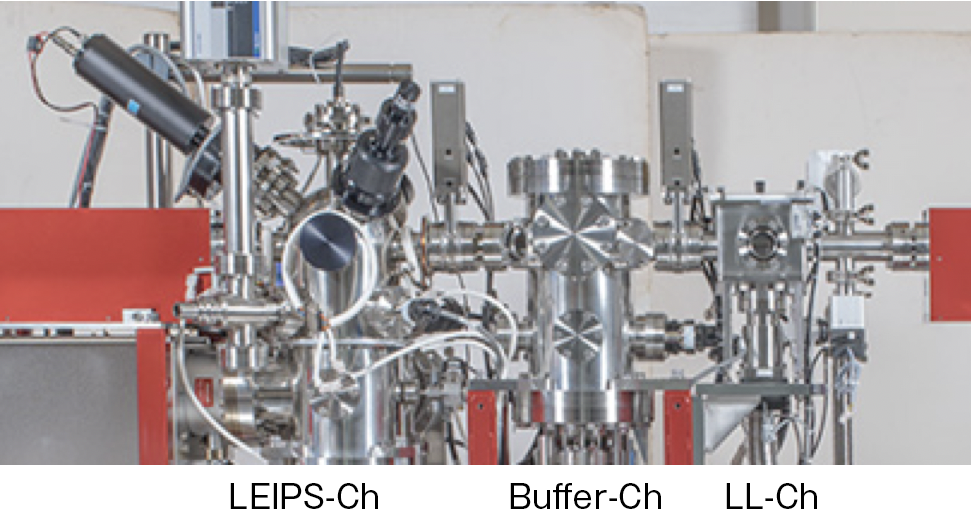

| 3 chambers configuration |

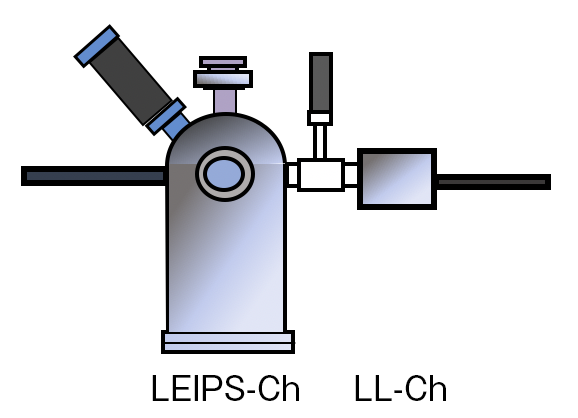

2 chambers configuration |

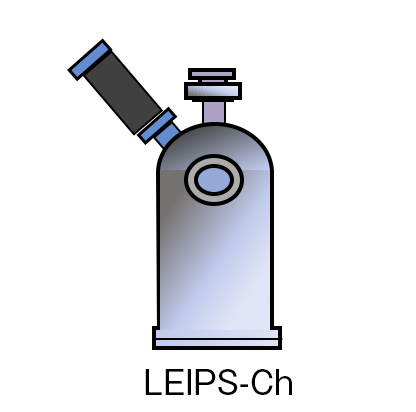

Single chamber configuration |
| Efficient measurement with a buffer chamber that stocks 4 samples.
Equipped with a vacuum sealing carrier BOX. |
|
Simple configuration.
Equipped with a vacuum sealing carrier BOX. |
|
| It is used by docking with an individual vacuum system. |
|
■Feature
| ● |
The measurement energy resolution less than 0.5 eV . |
|
| ● |
Equipped with the LEIPS software that realizes easy operation (measurement & energy evaluation) |
|
| ● |
Stable low-energy electron emission is realized by a dedicated electron gun and a dedicated activation process. |
|
| ● |
Measurement point magnetic field zero adjustment mechanis |
|
| ● |
The subtrate holder transfer mechanism that facilitates docking with various systems |
|
| ● |
The attached carrier BOX allows the substrate to be attached anddetached without exposure to the atmosphere. |
|
| ● |
Various options: High-precision substrate tilting mechanism, vapor deposition mechanism, etc |
|
|
 |
■LE-1 can support Multi- systemization as standard.
We have a track record of docking with photoelectron spectrometers (XPS, UPS), PYS (photoelectron yield spectroscopy), etc.
| ● |

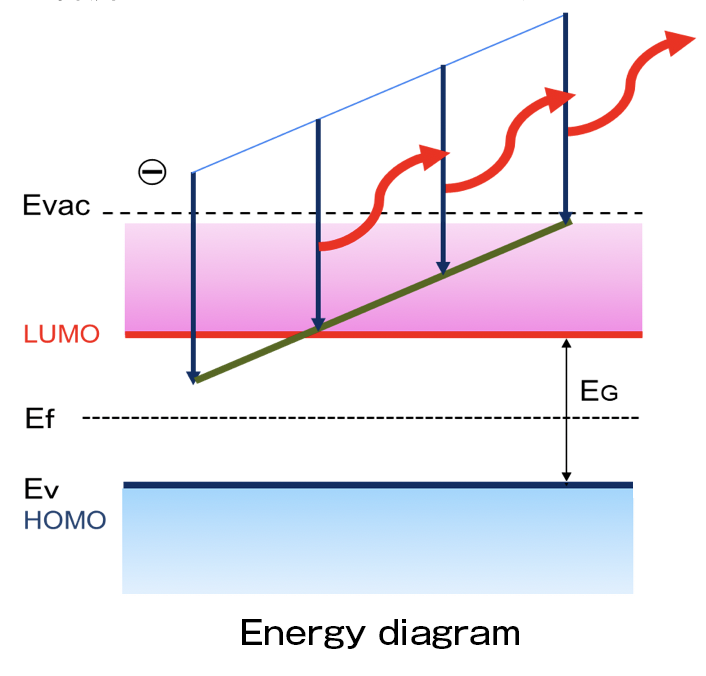

Ionization energy |
Ev |
| ● |
Fermi level |
Ef |
| ● |
Band gap |
EG |
※We can propose a composite LEIPS sysytem with PYS system in collaboration with TOKYO INSTRUMENTS ,INC. |
 |
|
|
|
|
|
|
