Organic Device Application
![](images/0.gif)
Aiming at total solution for organic device research.

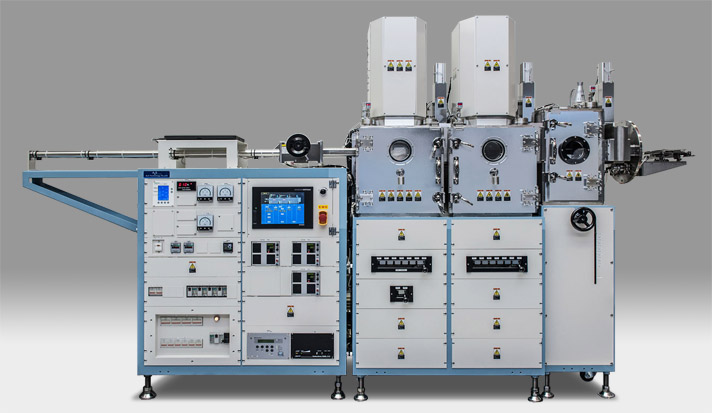

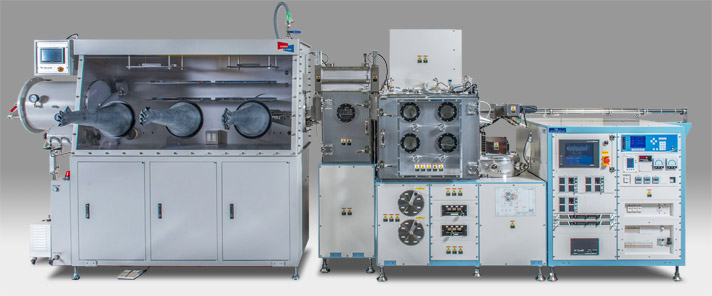

Organic vacuum deposition system
![Organic vacuum deposition system](images/712-sink-2.jpg)
![](images/0.gif)

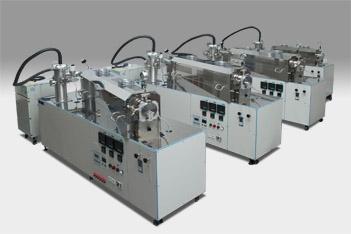

Sublimation purification equipment
![Sublimation purification equipment](images/351-syou-1.jpg) |
![](images/0.gif) |
P-100 (quartz tube diameter φ33,φ45
Completely dry pumping system
Special designed heater mechanism with gentle slope
Temperature ramp monitoring is always available
Sublimation process can be monitored.
|
![](images/0.gif)
Useful items

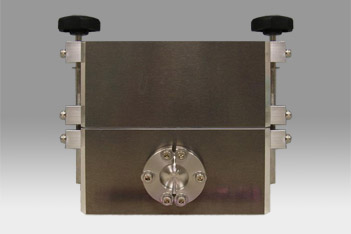

Carrier box ![Carrier box](images/careerbox-l.jpg)
Carrier box is a container designed to place
substrate in the glove box and take
substrate within it out of the glove box. |
![](images/0.gif) |

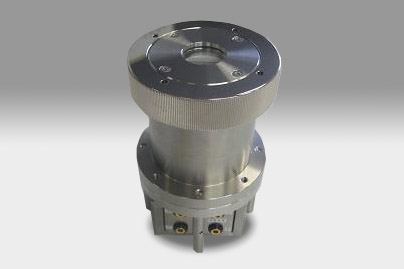

Measurement chamber ![Measurement chamber](images/351-keis.jpg)
Light can be taken in and out by putting the device in vacuum.
We can manufacture it according to your desired specifications.
|
![](images/0.gif)
![](images/0.gif)

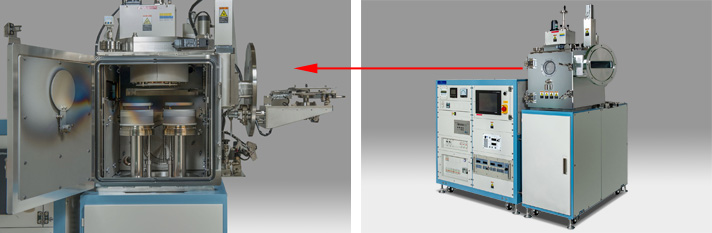

Sputtering System
![](images/0.gif)
![Sputtering System](images/712-supa.jpg)
We manufacture and sell sputtering system of various structures from stand-alone
to multi-chamber system connected with vacuum evaporator. |
![](images/0.gif)

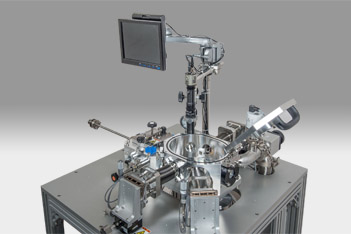

Vacuum Prober
![](images/0.gif)
![Vacuum Prober](images/351-puro.jpg)
Prober with carrier box
|
![](images/0.gif) |
It is used to measure the device characteristics by
moving the probe precisely in vacuum. By combining
with a carrier box, it becomes possible to measure
the substrate after completion of film formation
without exposing it to air.
|
![](images/0.gif)

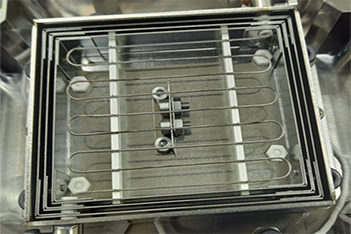

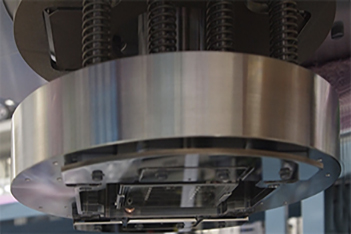

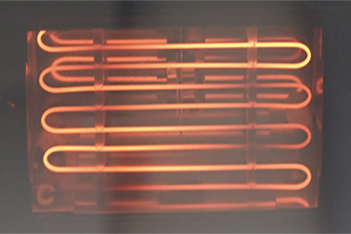

General purpose high temperature heating mechanism
![](images/0.gif)
![](images/351-hany-1.jpg)
|
![](images/0.gif) |
It is possible to control substrate high temperature heating during film formation by installing it in evaporation system , sputtering system, etc.
Useful for evaluation of crystallinity, arrangement, modification, etc.
|
![](images/0.gif)
![](images/0.gif)
Specifications
Iitem |
Specification |
Remarks |
Heating temperature |
~600℃ |
Temperature monitor value |
Effective heating area |
About40mm×40mm |
|
Heater material |
Tungsten |
With a quartz plate shield |
Heater capacity |
20V,20A |
Approximately 10V-11A at 500℃ |
Temperature monitor |
K type thermocouple |
Type changeable |
Usage environment |
Vacuum (less than 7×10-2Pa) |
|
Option:~900℃specification / Various susceptors / Substrate trays / etc

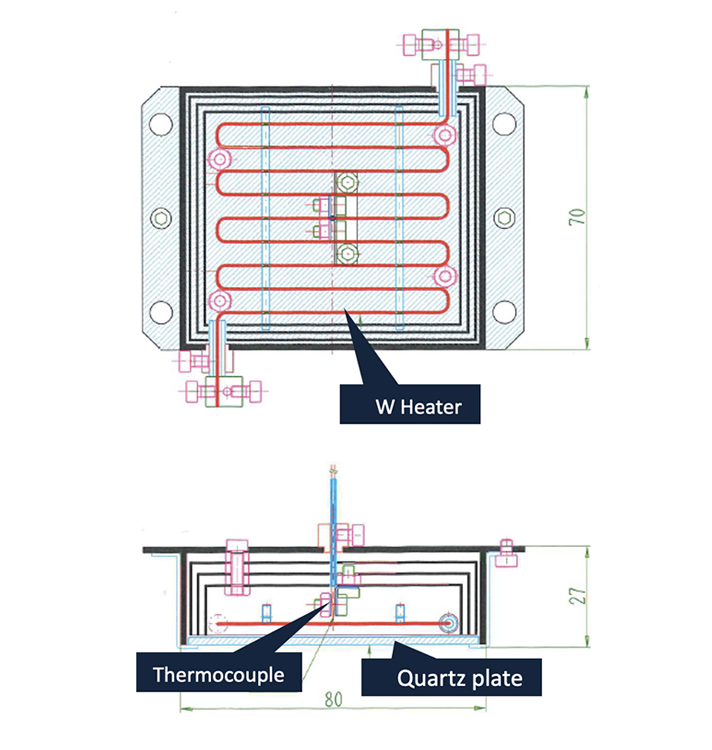

Dimension
![](images/712-zu.jpg)
General purpose high temperature heating mechanism PDF catalog |
